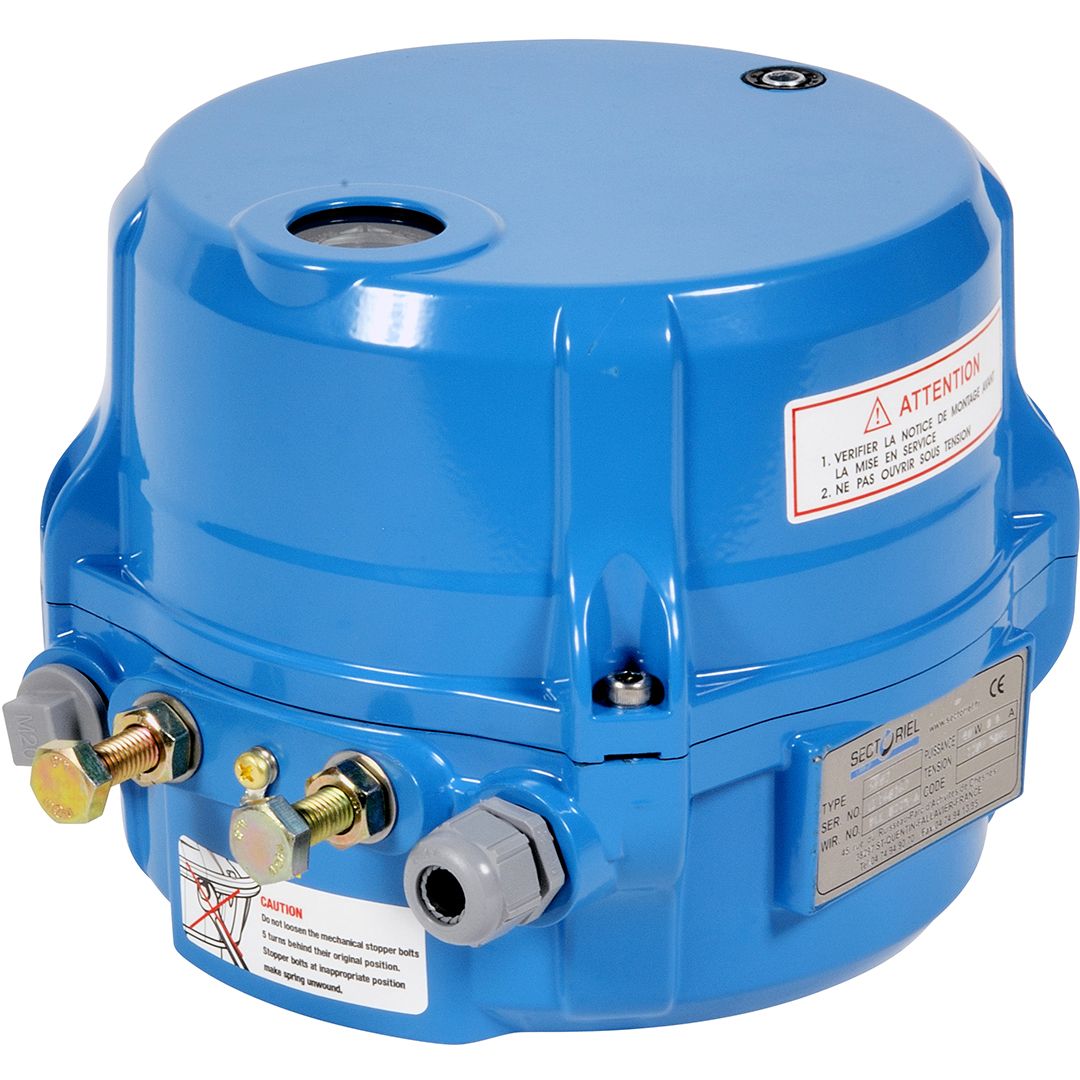

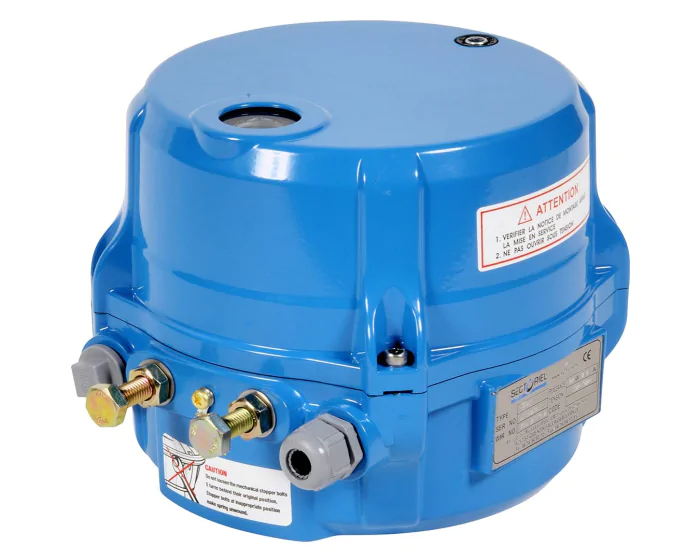

The 30 Nm spring return electric actuator for 1/4 turn valve with anti-condensation heater. Aluminium housing and cover with IP67 protection. Service S4 - 50%.
Three piece ball valve with floating ball Body in stainless steel ASTM A351 Gr. CF8M Ball in stainless steel AISI 316 Seats in PTFE Cavity Filler Max. working pressure: 138 bar (DN 8 to DN 25), 103 bar (DN 32 to DN 50), 69 bar (DN 65 to DN 100) Connection: BSP threaded ISO mounting flange for direct mount Fire-safe according to API 607, Part 4 With lever in stainless steel and locking device
| Specification | Value |
|---|---|
| Square, star (mm) | 14 |
| Manual override | By key |
| Torque (Nm) | 30 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F3/F4/F5 |
| Power (W) | 40 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | Regulation |
| Electric actuator type | SR 03 |
| Electric actuator series | SA/NA series |
| Voltage | 230 V AC |
| Positive safety type | Spring return |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC | 023070 | S1004511 |
€2,556.53
(excl. btw)
|
add to cart |
| 24 V DC | 023071 | S1004512 |
€2,556.53
(excl. btw)
|
add to cart |
